Chime Master's inSpire Audio™ DSP amplifiers are required in systems that mix full range speaker systems with traditional narrow band long through horn speakers. Millennium and Platinum inSpire Edition carillons have an extended low frequency output that can damage conventional horn speakers unless they are filtered.

The inSpire amplifier is more than just an amplifier. It is also a capable and sophisticated loudspeaker processor. Integration of DSP and amplification means that the processor knows exactly what the amplifier is doing, allowing the dynamics processing and protection circuitry to be far more accurate and effective. This synergistic approach employs both RMS and Peak Limiters that provide the amplifier and loudspeaker combination to produce more output without being pushed to distortion or destruction.

The onboard DSP offers four channels of crossover filters, parametric EQ, alignment delay and dynamics processing - everything needed to optimize and fine-tune an electronic carillon system. We have engineered the amplifier's programming using a combination of filtering, limiting and speaker processing that compensates for the non-linearities in speaker and horn design, resulting in exceptional performance.


Value Added

DSP settings can be daunting, but we take care of all of that for you. We have already created a tuning library for all of the speaker combinations for the inSpire systems we provide.

Chime Master Audio Engineers take your tower survey and determine the best placement for each type of speaker specified. Calculation of the relative distances of each driver to a ground level listener's ear is accounted for with DSP time alignment. Then we equalize amplifier outputs to insure that the combination of speakers work together for outstanding bell ringing realism.

Finally, we password protect the settings so knob twisters and button pushers are prevented from losing these precious settings. Volume control is set (and scheduled) on the carillon system, and the convenient Mute buttons on the amplifier allow you to manually audition the bells inside only.

Amplifier Features

  • Designed and assembled in the USA
  • Universal switch-mode power supply with Power Factor Correction
  • Four balanced line inputs
    • Three terminal Euro connectors
  • Amplifier power standby logic input
    • Includes connection cable for audio and power control from carillon
  • Four output channels
    • Touch-proof eight terminal Euro connector
    • Outputs can be programmed for parallel operation for higher current in low impedance speakers
    • Outputs can be programmed for bridged-series operation for higher voltage for transformer speakers
    • Each output features individual gain settings to match driver sensitivities
    • Each output features DSP crossover and parametric equalization
    • Each output features DSP delay for speaker air column and positioning time alignment
  • Amplifier and Load protection
    • Short circuit
    • Open circuit
    • Thermal
    • RF
    • On/off muting
    • DC fault shutdown
    • Active inrush limiting
    • Input and Output current limiting

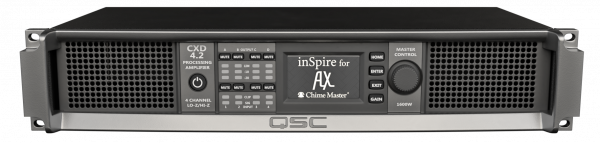

  • Integrated front panel
    • Channel Select and Mute buttons
    • Input and Output LED Metering
    • 400x240 LCD
    • Intuitive navigation buttons
    • LED power button and indicator
    • Cast aluminum handles

Audio Performance

  • Typical distortion: 0.01 to 0.03% (8 Ohm) 0.03 - 0.06% (4 Ohm)
  • Maximum distortion: 1.00% (4-8 Ohm)
  • Noise (unmuted): -101 dB
  • Gain
    • inSpire 1600: 34 dB
    • inSpire 2500: 38.4 dB
  • Damping factor: > 150
  • Input impedance: > 10k Ohm
  • Maximum RMS input level: 12.28V (+24 dBu)

Power Ratings

inSpire 1600

  • 400 Watts continuous per output into 4 Ohms
  • 800 Watts continuous per two bridged outputs into 8 Ohms or 70V line
  • 800 Watts continuous per two paralleled outputs into 4 Ohm load
  • 1600 Watts continuous per four bridged/paralleled outputs into 4 Ohm load
  • 1600 Watts continuous per four paralleled outputs into 2 Ohm load

inSpire 2500

  • 500 Watts continuous per output into 70V line
  • 625 Watts continuous per output into 8 Ohm load
  • 1250 Watts continuous per two bridged outputs into 8 Ohm load
  • 1250 Watts continuous per two paralleled outputs into 4 Ohm load
  • 1875 Watts continuous per three paralleled outputs into a 2 Ohm load
  • 2500 Watts continuous per four bridged/paralleled outputs into 4 Ohm load
  • 2500 Watts continuous per four paralleled outputs into 2 Ohm load

inSpire 4600

Usually multiple 1600 and/or 2500 amplifiers will serve your purposes. For extraordinary system designs, we can provide additional power.

  • 1000 Watts continuous per independent output into 70V line
  • 1150 Watts continuous per independent output into 8 Ohm load
  • Outputs may be combined in bridge or parallel configurations to increase voltage or current as needed

AC Power

  • Locking IEC cable
  • inSpire 1600: 100-132/200-240 VAC, 50-60 Hz
  • inSpire 2500: Universal Power Supply 100–240 VAC, 50–60 Hz

Physical Specifications

inSpire 1600

  • Dimensions (HWD) inches: 3.5 × 19 × 12 (mm: 89 × 482 × 305)
  • Weight Net: 18.5 lb / 8.39 kg
    • Shipping: 22 lb / 10.0 kg

inSpire 2500

  • Dimensions (HWD) inches: 3.5 × 19 × 16 (mm: 89 × 482 × 406)
  • Weight Net: 21 lb / 9.5 kg
    • Shipping: 25 lb / 11.0 kg

Agency Approvals

  • UL
  • CE
  • RoHS/WEEE compliant
  • FCC Class A (conducted and radiated emissions)
